9547

Air Spring;Rlob/P Air Spring Type : Rolling Lobe Bellows Color : Black Bellows Material : Rubber Bottom Plate Bolt Hole Quantity : 1 Bottom Plate Diameter : 8.19 in Grade Type : Standard Replacement Maximum Height : 10.79 in Minimum Height : 3.9 in Mounting Hardware Included : No Mounting Stud Quantity : 1 Package Contents : 1 Air Spring Packaging Type : Box Part Number : 452-9547 Part Type : Suspension - Air Spring Piston Material : Plastic Selling Package Quantity : 1 Selling Package Quantity UOM : EA Top Plate Bolt Hole Quantity : 1 Top Plate Diameter : 9 in Weight : 11.200000 Part number: 452-9547 Cross Reference: VMRS : 016008001; OTHER : 1R11268, 1R11-268, 66109, 68358, 9547, AB1DK20G9547, AB1DK20G-9547, AS8859, AS-8859, AS9541, AS95470, MAF9547 Product Class: Suspension - Air Spring

Automann Bellows# : 1DK20G Bottom Part # : BS11561 Bottom Plate C to C Dia. (D) : N/A Bottom Plate Dia. (C) : 8.19 Bottom Plate Hole/Stud Qty : 1 Bottom Plate Type : Plastic Bracket : AB9622P Bumper : No Contitech Bellows# : 9 9-9 Design Height (In) : 7.00 Firestone Bellows# : 1T15LA-(1), 1T15KW-(1) Goodyear Bellows# : 566-22-3-021 Load (Lbs) 100 PSI : 6400 Load (Lbs) 80 PSI : 5100 Max. Dia. : 11.40 Min. Height : 3.90 Natural Freq. (CPM) : 103 Top Plate C to C Dia. (B) : N/A Top Plate Dia. (A) : 9.00 Top Plate Hole/Stud Qty : 1 Triangle Bellows# : 6397 Type : Rolling Lobe Part number: AB1DK20G-9547 OE MFG: Contitech OEM Reference: 9 9-9 P 859 Cross Reference: CONTITECH : 68358, 9 9-9 P 859; FIRESTONE : 9547, W013589547, W01-358-9547, W015449547, W01-544-9547, W015449548, W01-544-9548, W015449549, W01-544-9549; GOODYEAR : 1R11268, 1R11-268; KENWORTH : C811004, C81-1004 |

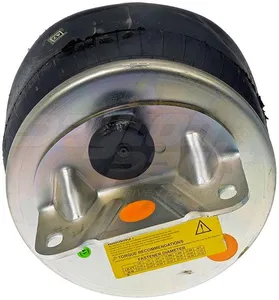

Air Spring Rlob/P Air Spring Type : Rolling Lobe Bellows Color : Black Bellows Material : Rubber Bellows Material Thickness : 1 in Bottom Plate Bolt Hole Quantity : 1 Bottom Plate Diameter : 8.19 in Grade Type : Standard Maximum Height : 10.79 in Minimum Height : 3.9 in Mounting Hardware Included : No Mounting Stud Quantity : 1 Package Contents : 1 Air Spring Packaging Type : Box Part Number : 452-9547L Part Type : Suspension - Air Spring Piston Material : Plastic Selling Package Quantity : 1 Selling Package Quantity UOM : Piece Top Plate Bolt Hole Quantity : 1 Top Plate Diameter : 9 in Weight : 13.000000 Part number: 452-9547L Cross Reference: VMRS : 016008001; OTHER : 1R11268, 1R11-268, 4529547, 452-9547, 4529547L, 452-9547L, 66109, 68358, 9547, 999P859, AB1DK20G9547, AB1DK20G-9547, AS8859, AS-8859, AS9547, AS95470, FS9547, GFAB9547, MAF9547, W013589547 Product Class: Suspension - Air Spring

Air Spring W013589547 Air Spring Type : Rolling Lobe Bellows Color : Black Bellows Material : Rubber Bottom Plate Bolt Hole Quantity : 1 Bottom Plate Diameter : 8.18 in Flexmember (Bellows Number) : 1T15LA-(-1) Grade Type : Standard Manufacturer : Firestone Maximum Height : 11 in Minimum Height : 3.9 in Mounting Hardware Included : Yes Mounting Stud Quantity : 1 Package Contents : 1 Air Spring Packaging Type : Box Part Number : 352-9547 Part Type : Suspension - Air Spring Piston Material : Plastic Selling Package Quantity : 1 Selling Package Quantity UOM : EA Top Plate Bolt Hole Quantity : 1 Top Plate Diameter : 9 in Weight : 10.800000 Part number: 352-9547 Cross Reference: VMRS : 016008001; PACCAR : C811004, C81-1004; OTHER : 1R11268, 1R11-268, 1T15LA1, 1T15LA(-1), 66109, 68358, 9547, 999P859, AB1DK20G9547, AB1DK20G-9547, AS8859, AS-8859, FS9547, PW013589547, W013589547 Product Class: Suspension - Air Spring

Air Spring Mack Multiple application Part number: 804330 OE MFG: INFINITY ENGINEERED PRODUCTS (FORMERLY) STEMCO OEM Reference: 1R11-268 Cross Reference: MACK : 8633-1R11268; PACCAR : C81-1005; OTHER : 1R11-268, 9547, E-FS9547 | Product Class: Air Springs

This high-quality Firestone air spring with the manufacturer part number 9547 is a reliable replacement for your Kenworth C81-1004 Airglide 400. It comes with a 1-year warranty and is compatible with various cross references such as W01-544-9547, W013589547, and W015449547. The air spring is designed for optimal performance and durability, ensuring a smooth ride for your commercial truck. Whether you're a professional truck mechanic or a DIY enthusiast, this Firestone air spring is a great choice for your suspension and steering needs. It is easy to install and provides reliable support for your truck's weight. Don't miss out on this opportunity to upgrade your vehicle's suspension system. Automann Bellows# 1DK20G Firestone Bellows# 1T15LA-(1), 1T15KW-(1) Goodyear Bellows# 566-22-3-021 Contitech Bellows# 9 9-9 Triangle Bellows# 6397 Load (Lbs) @80 PSI 5100 Load (Lbs) @100 PSI 6400 Natural Freq. (CPM) 103 Design Height (In) 7.00 Bottom Plate Type Plastic Top Plate Hole/Stud Qty 1 Top Plate Dia. (A) 9.00 Top Plate C to C Dia. (B) N/A Bottom Plate Hole/Stud Qty 1 Bottom Plate Dia. (C) 8.19 Bottom Plate C to C Dia. (D) N/A Bottom Part # Bumper No Bracket Min. Height 3.90 Max. Dia. 11.40
